This overview provides information on what crypto tokens are, what they do and also lists crypto token fields.

Description
Usage
Crypto Token Fields
- Common Fields
- PKCS#11 Fields
Azure Key Vault Fields
Crypto Token Authorization

For more information about how to manage crypto tokens, see Crypto Tokens Operations.

Description

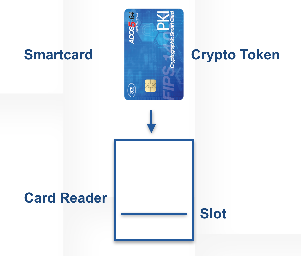

Historically the term crypto token denotes the differentiation of a smart keycard and a slot reader, where the card and the slot from which it is read are not permanent.

As the modern HSM became widely used, this model has become dated, but the terminology remains. The modern crypto token most often remains in the same memory area of the HSM (the two being one and the same), though while crypto token labels and slot indexes are always constant, slot numbering may vary. In EJBCA, the term crypto token means an area of memory containing keys, whether this is an HSM slot or a soft keystore created locally.

Usage

Common for all EJBCA crypto tokens is that:

A crypto token may exist on one and only one slot.
A crypto token may contain any number of keypairs and aliases.

To this end, crypto tokens have several different applications in EJBCA:

Contained within CAs for signing certificates and CRLs. For more information, see Certificate Authority Overview.
Referred to by OCSP Responders to sign OCSP replies. For more information, see OCSP KeyBindings.
Used to authenticate TLS communication between EJBCA nodes. For more information, see Authentication Keybinding.

Crypto Token Fields

Common Fields

Common fields for all crypto tokens:

Field	Description
Name	A user-friendly name for the Crypto Token.
Type	PKCS#11 HSM slot mapping or a Soft PKCS#12 keystore in the database.
Authentication Code	The PKCS#11 slot PIN or the password that will protect the soft keystore.
Repeat Authentication Code	Should be the same as the Authentication Code value.
Auto-activation	If the authentication code should be stored (encrypted) in the database and used to always keep the Crypto Token active.
Allow export of private keys	If selected, EJBCA will not try to prevent Soft Crypto Token keystore export.
Use explicit ECC parameters (ICAO CSCA and DS certificates)	Select to use the explicit ECC parameters. If cleared, the parameters are ignored. Note that this is only applicable for ePassport ICAO CSCA and DS certificates.

PKCS#11 Fields

In addition to the common fields, the following fields are available if you have chosen to create a PKCS#11 crypto token:

Field	Description
PKCS#11 Library	PKCS#11 shared library configured as available in conf/web.properties.
PKCS#11 Reference Type	Type of a slot reference described by the PKCS#11 Reference (Id, Index or Label).
PKCS#11 Reference	PKCS#11 slot number, index or label.
PCKS#11 Attribute File	If required, this is a PKCS#11 attribute file configured as available in conf/web.properties. Note that this should only be required for non-common HSMs.

PKCS#11 may require additional configuration of your application server, see Application Servers.

For more information on PKCS#11 properties, see Hardware Security Modules (HSM). A unique Crypto Token identifier is generated when the token is created.

Azure Key Vault Fields

EJBCA supports using Microsoft's Azure cloud platform's Key Vault service as a crypto token. For information on how to configure your Key Vault service, refer to the Microsoft Azure Key Vault documentation.

In addition to the common fields, when using Azure Key vault the following fields are available in EJBCA:

Field	Description
Key Vault Type	Select the key vault type you have purchased from Microsoft. Premium tier protects cloud-based keys using a hardware security module. Standard tier encrypts keys using a software key.
Key Vault Name	The name selected when the Azure Key Vault was created.
Key Vault Client ID	The Azure Application ID for a service principal that has permission to perform operations against this Key Vault instance.
Key Vault Public Key Authentication	Select to authenticate to Azure Key Vault using a key/certificate pair from an Internal Key Binding. Leave this option cleared to use an application secret for Key Vault authentication.
Key Vault Binding Name	Only displayed if Key Vault Public Key Authentication is selected. Select the Internal Key Binding containing the key and certificate to be used to authenticate to Key Vault. The certificate for the selected Internal Key Binding should be uploaded to Azure as an authentication method for the service principal specified in the Key Vault Client ID field above.

Crypto Token Authorization

For all authorized CA operations, authorization for underlying Crypto Token operations is implied. The minimum authorization required to create a CA is authorization to "view" and "use" (or "modify") a Crypto Token. Since modification of PKCS#11 Crypto Tokens can change the slot mapping, the same authorization for creation and modification is required.

The following lists the authorization rules:

Authorization Rule	Description
/cryptotoken/	Required for displaying the Crypto Token management in the Admin GUI.
/cryptotoken/view/cryptoTokenId	Required for viewing Crypto Token information and listing key pairs.
/cryptotoken/use/cryptoTokenId	Required for binding a Crypto Token to a CA.
/cryptotoken/modify/	Required for creating or modifying a Crypto Token.
/cryptotoken/delete/	Required for deletion of a Crypto Token.
/cryptotoken/activate/cryptoTokenId	Required for activation of a Crypto Token.
/cryptotoken/deactivate/cryptoTokenId	Required for de-activation of a Crypto Token.
/cryptotoken/keys/generate/cryptoTokenId	Required for key pair generation.
/cryptotoken/keys/remove/cryptoTokenId	Required for key pair removal.
/cryptotoken/keys/test/cryptoTokenId	Required for key pair testing.
